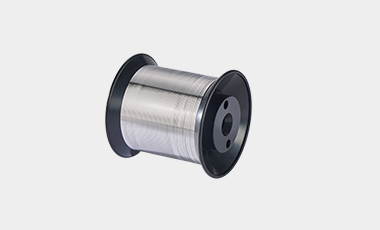

Coated flat wire

BRUKER-SPALECK offers electroplated flat wires for your individual application with nickel, silver, tin and other metal coatings.

Download Product Flyer FLATWIRE

Download Product Flyer MEDICAL FLATWIRE

Download Product Flyer RF & MICROWAVE FLATWIRE

Download Product Flyer "Benchmark test champion SPC ribbon"

Base material copper

  • In accordance with EU standard: DIN EN 13602 (Cu-ETP, Cu-ETP1, Cu-Of, Cu-Of1)
  • In accordance with US standard: ASTM B 298-07

Dimensions

  • Thickness (T): 0,020 – 0,400 mm / 0,0008 – 0,0157 inch
  • Width (W): 0,400 – 4,000 mm / 0,0157 – 0,1574 inch
  • T/W-ratio: max. 1/80

Designs

  • Available in different strength classes
  • Edge shape: milled round
  • Silver content according to customer requirement

Features

  • Geometrical and mechanical values are reviewed and documented according to your requirements
  • Tightest tolerances in terms of thickness and width
  • Resistance measurement to defined specifications
  • Manufactured to your customized specifications
  • Low FFT peaks

Applications

Flat wire for:

  • shielding wires for high-frequency cable
  • fusible conductors for safety fuses

Base material copper

  • In accordance with EU standard: DIN EN 13602 (Cu-ETP, Cu-ETP1, Cu-Of, Cu-Of1)

Dimensions

  • Thickness from 0.050 to 0.260 mm
  • Width from 0.500 to 2.000 mm

Designs

  • Thickness (T): 0,040 – 0,260 mm / 0,0015 – 0,0102 inch
  • Width (W): 0,400 – 2,500 mm / 0,0157 – 0,0984 inch
  • T/W-ratio: max. 1/30

Features

  • Geometrical and mechanical values are reviewed and documented according to your requirements
  • Tightest tolerances in terms of thickness and width
  • Widerstandsmessung nach definierter Vorgabe
  • Resistance measurement to defined specifications
  • Manufactured to your customized specifications

Applications

Flat wire for:

  • flexible flat cable (FFC)
  • photovoltaic modules
Bruker-Spaleck Coated Silver Nickel Tin Flat Wires

Base material copper

  • In accordance with EU standard: DIN EN 13602 (Cu-ETP, Cu-ETP1, Cu-Of, Cu-Of1)



Dimensions

  • Thickness (T): 0,050 – 0,260 mm / 0,0019 – 0,0102 inch
  • Width (W): 0,500 – 2,000 mm / 0,0196 – 0,0787 inch
  • T/W-ratio: max. 1/20

Designs

  • Available in different strength classes
  • Edge shape: milled round
  • Nickel content according to customer requirement

Features

  • Geometrical and mechanical values are reviewed and documented according to your requirements
  • Tightest tolerances in terms of thickness and width
  • Resistance measurement to defined specifications
  • Manufactured to your customized specifications

Applications

Flat wire for:

  • electronic components
Bruker-Spaleck Coated Silver Nickel Tin Flat Wires

Coated flat wires made of steel can often be used as a more cost-effective alternative to stainless steels.

Here, we often use pre-coated wires, including for example



  • ZnAl coating (zinc-aluminum)
  • Ni coating (nickel-plated wires)
